LSZH Sheath GJXH FTTH Fiber Optic Network Cable 2 Core

2 Core LSZH Sheath GJXH FTTH Fiber Optic Cable

▌Product description

With the development of optical communication network and the deepening of optical fiber access, the construction of FTTH network is growing exponentially. Major communication manufacturers will invest a lot of money in the large-scale commercialization of FTTH. From this series of situations, the focus of optical fiber communication network construction will shift to FTTH in the next few years. The new generation of all-optical network requires that the optical cable as the optical signal transmission medium can not only provide wider working bandwidth, higher transmission rate and longer transmission distance, but also have the characteristics of long service life and easy installation and maintenance. Our products are the best choice.

▌Application

• Connection of optical communication network;
• Connection from tower to machine room, tower to building and between buildings;
• Replace flexible optical cable as indoor wiring;
• Realize the application under engineering emergency and special conditions.

▌Characteristics

• Indoor drop cable: Small size, especially suitable for adding lines to existing pipelines.
• Equipped with slot, fiber optic cable or jumper can be easily taken out.
• As one of the professional fiber optic accessories suppliers, TUOLIMA can customize the optical cable according to your requirements.

▌General Specifications:



▌Fiber Specifications:



Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	≧1180,≤1330	≧1180,≤1330	≧1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4





▌Product mix









▌Standard Color Identification of Fiber



No.	1	2	3	4
Color	Blue	Orange	Green	Brown

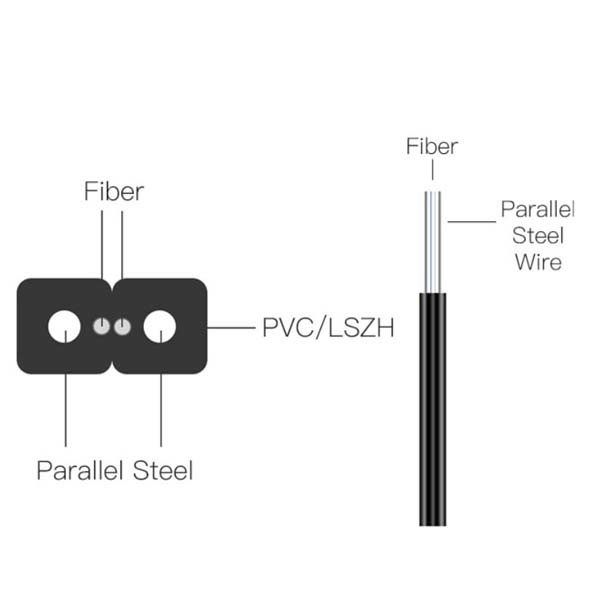

▌Cable Design



Item	Description
Model No	GJXH/GJFXH
1. Fiber count	1 Core , 2 Core, 4 Core
2. Cable Diameter	3.0*2.0mm
3. Cable Weight	11.5KGS/9.5KGS
4. Strength member
- Material	Steel/FRP
- Diameter	0.45mm
5. Outer Sheath
- Material	LSZH (Black/white)
6. Sheath marking
- Type of marking	Laser printing





▌Packing

FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3: How about the cable's quality?
A3: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A4: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5: Do you accept the OEM order and how many is the MOQ?
A5: Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
